APEC 25mm 2 Core Aluminium Aerial Bundled Cable Black
Loading...
Description

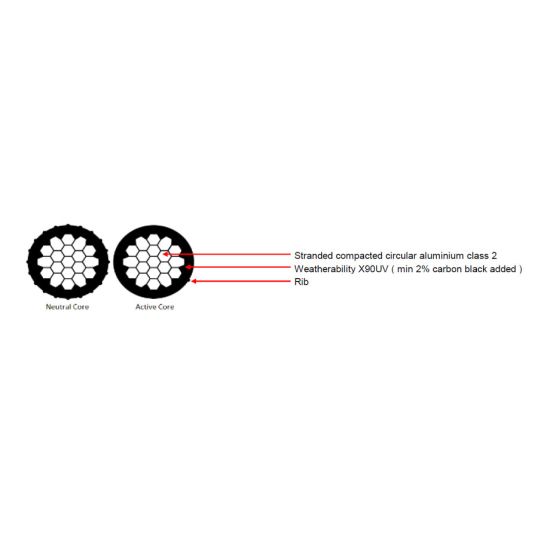

Aerial Bundled Cable, 25 mm, Aluminium, 2 Core, 0.6-1 kV, 19/1.3 mm Strands, 5.9 mm Nominal Diameter, 18.4 mm Overall Diameter, 1.3 mm Insulation Thickness, X-90 XLPE Insulation, Black Sheath, 90 deg C, AS/NZS 3560.1
Key Specifications
| Barcode (EAN-13) |
932666300552
|
|---|---|
| SKU |
APEABC025A02
|
| Brand |
APEC
|
| Product Type |
Cables Aerial
|
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
Additional Information
| Standard Pack Size | 1 |
|---|---|
| UNSPSC Class | 26121600 |
| UOM | MTR |
| Vendor Product | ABC025A02 |
| Conductor Size | 25 mm |
| Conductor Type | Aluminium |
| Insulation Material | X-90 XLPE |
| Insulation Thickness | 1.3 mm |
| Nominal Diameter | 5.9 mm |
| Number of Cores | 2 Core |
| Overall Diameter | 18.4 mm |
| Sheath Colour | Black |
| Standards | AS/NZS 3560.1 |
| Stranding | 19/1.3 mm |
| Temperature | 90 deg C |
| Voltage | 0.6-1 kV |
