Flat Twin Active 2C 1.5mm PVC/PVC Red/White White 450/750V

APEC 1.5mm Flat Twin Active Cable Red/White 100mtr

PRODUCT CODE:
APEVFM105C02RW-1
Std Pack Size
100
OUR P/N:
APEVFM105C02RW-1

You need to be registered and logged in to view product details and pricing

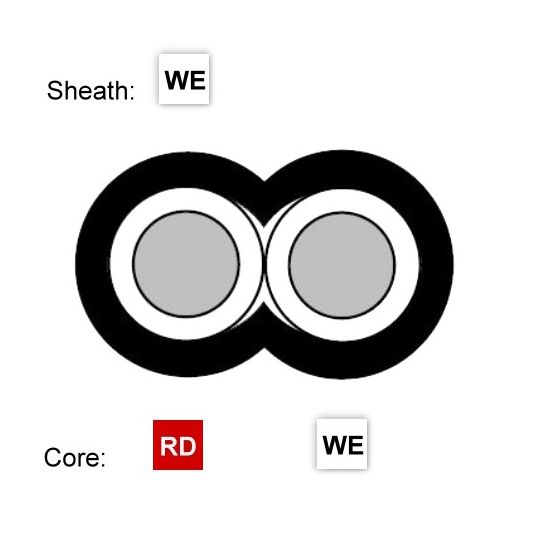

Flat Twin Active Cable, 2 Core, 1.5 mm, Annealed Copper, 450/750 Volt, 7.4 mm x 4.7 mm Overall Diameter, 0.6 mm Insulation Thickness, 0.9 mm Sheath Thickness, PVC Insulation, PVC Sheath, Red White Cores, White Sheath, 90 deg C, AS/NZS 5000.2

Additional Information

Additional Information
Brand APEC
Standard Pack Size 100
UNSPSC Class 26121600
UOM MTR
Vendor Product VFM105C02RW-1
Conductor Type Annealed Copper
Core Colours Red/White
Insulation Material PVC
Insulation Thickness 0.6 mm
Overall Diameter 7.4 mm x 4.7 mm
Product Type Cables TPS SDI & Flat
Sheath Material PVC
Sheath Thickness 0.9 mm
Sheath Colour White
Standards AS/NZS 5000.2
Temperature 90 deg C
Voltage 450-750 Volt
Conductor Size 1.5 mm
Number of Cores 2 Core
