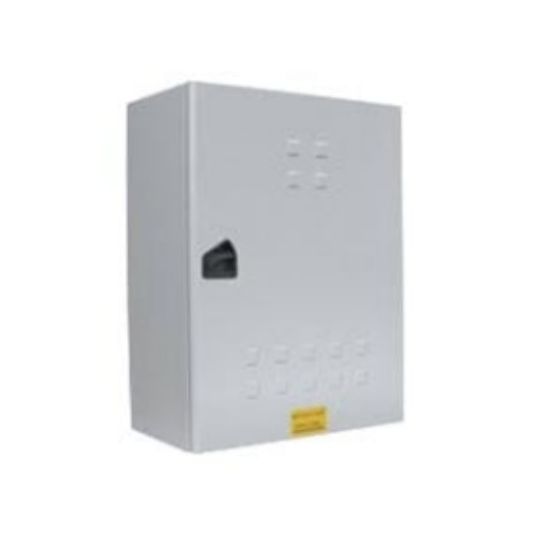

Name: Meter Box QLD 24P W485mm H690mm D278mm DIN Mount
SKU: B&RQ20/S
Availability: InStock

Skip to the beginning of the images gallery

Std Pack Size

OUR P/N:

B&RQ20/S

You need to be registered and logged in to view product details and pricing

Description

Meter Box Queensland, 24 Poles, 690mm Height, 485mm Width, 278mm Depth, 480mm Panel Height, 461mm Panel Width, Padlock Lock, IP23, DIN, 316 Stainless Steel, RAL 7035, Galvanised

Specifications

Additional Information

Additional Information
Brand	B&R
Range Name	Ausrack Wall onyX
Standard Pack Size	1
UNSPSC Class	39121100
UOM	EA
Vendor Product	Q20/S
Enclosure Depth	278mm
Enclosure Width	485mm
Enclosure Height	690mm
Panel Height	480mm
Panel Width	461mm
Product Type	Meter Boxes Domestic
Lock Type	Padlock
Colour	RAL7035 Grey
Finish	Galvanised
Number Of Poles	24 Pole
Mounting Method	DIN Rail
Material	Stainless Steel
IP Rating	IP23

Delivery and Returns

It is a long established fact that a reader will be distracted by the readable content of a page when looking at its layout.

Description

Technical Information TECHNICAL INFO

Specifications SPECS

Designed for both single and multi-phase installations
Provide safety, quality and performance
Suitable for domestic and light commercial metering applications
Easy-to-use gravity catch
Ratchet sliding cable entry
RotaDIN rotating/removable DIN section
Cord retainer for easy retention of extension cords
Identification with covered labelling section
Weatherproof installation label for AS/NZS3000 compliance
Padlockable facility

Meter Box QLD 24P W485mm H690mm D278mm DIN Mount

B&R Meter Box Queensland 24 Pole W485mm H690mm D278mm DIN Mount Steel Galvanised
