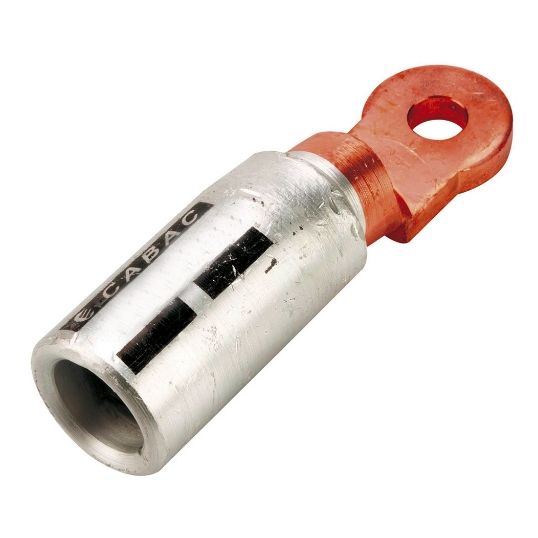

Cabac Crimp Lug Standard Type A Bi-Metal 16mm Blank Palm 75mm OAL

Description

Crimp Lug, Standard, Type A, Bi-Metal, 16 mm Conductor, Blank Palm For Custom Drilling, Standard Barrel, Barrel Length: 20 mm, Palm Type: Round, 75 mm Overall Length, Bi-Metal Body, Conductive Material: Aluminium Barrel/Copper Palm, Tin Electroplated Finish, -40 to 100 deg C, Number of Strands: 7/1.04, Inside Diameter: 5.5 mm, 22 mm Lug Length, 20 mm Lug Width, 4 mm Lug Thickness, A/F Hex Die: 9 mm, Crimping Die: HT-6/35AL, Tensile Strength: 110 MPa

Key Specifications

Barcode (EAN-13)	9318674504917
SKU	CAABL16
Brand	Cabac
Range Name	Standard Lugs Bi-Metal
Product Type	Lugs Standard

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Manufactured using friction welding process producing a very strong electrically sound joint Suitable for aluminium conductor and copper terminals or busbar Crimp from palm end to force compound into conductor strands Crimping compound in barrel and sealed with cap Crimping positions, AF, etc. clearly marked on barrel
Standard Pack Size	1
UNSPSC Class	39121400
UOM	EA
Vendor Product	BL16
A-F Hex Die	9 mm
Barrel Length	20 mm
Barrel Type	Standard
Body Material	Bi-Metal
Conductive Material	Aluminium Barrel/Copper Palm
Conductor Size	16 mm
Crimping Die	HT-6/35AL
Finish	Tin Electroplated
Inside Diameter	5.5 mm
Lug Length	22 mm
Lug Thickness	4 mm
Lug Width	20 mm
Number of Strands	7/1.04
Overall Length	75 mm
Palm Type	Round
Stud Size	Blank Palm For Custom Drill inchg
Temperature	-40 to 100 deg C
Tensile Strength	110 MPa
