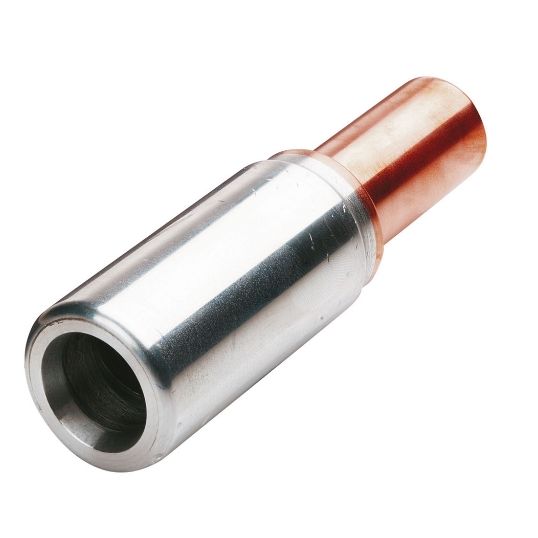

Cabac Crimp Link Reducing Bi-Metal 50mm 35mm 19/1.78 19/1.53 70mm OAL

$Cabac\Cabac_BLK.jpg$

Description

Crimp Links, Reducing, Bi-Metal, Conductor Size from 50 mm to 35 mm, Number of Strands from 19/1.78 to 19/1.53, Inside Diameter from 9.5 mm to 8.2 mm, 70 mm Overall Length, A/F Hex Die from 13.2 mm to 9.2 mm, Crimping Die from HT-50/70AL to HT130-C-35, Number of Crimps from 1 to 1, Bi-Metal Body, Aluminium/Copper Barrel Conductor

Key Specifications

Barcode (EAN-13)	9318674506911
SKU	CAABLK50/35
Brand	Cabac
Range Name	Reducing Links Bi-Metal
Product Type	Links Reducing Type

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Manufactured using friction welding process producing a very strong electrically sound joint Link circular or sector stranded aluminium cable to circular copper cable Designed to be crimped with CABAC and MSS Power tools and dies Crimp with standard hex dies
Standard Pack Size	1
UNSPSC Class	39121400
UOM	EA
Vendor Product	BLK50/35
Body Material	Bi-Metal
Conductive Material	Aluminium/Copper Barrel
From Conductor Size	50 mm
From Crimping Die	HT-50/70AL
From Number of Crimps	1
From Inside Diameter	9.5 mm
From Number of Strands	19/1.78
Overall Length	70 mm
To Crimping Die	HT130-C-35
To Conductor Size	35 mm
To Inside Diameter	8.2 mm
To Number of Crimps	1
To Number of Strands	19/1.53
