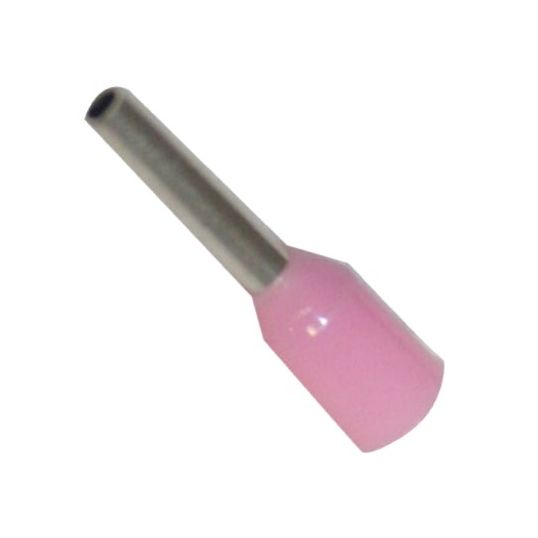

Cabac Bootlace Ferrule Insulated 0.34mm 0.8x6mm Pin 10mm OAL Pink

$Cabac\Cabac_BLP034.jpg$

Description

Insulated Bootlace Ferrule, 0.34 mm, 1 Conductors, 6 mm Pin Length, 0.8 mm Pin Diameter, 1.9 mm Collar Inside Diameter, HNKE3, 10 mm Overall Length, Copper Sleeve, Nylon Insulation, Pink Insulation, Copper Contact, Tin Electroplated, -55 to 105 deg C, 100 Pack

Key Specifications

Barcode (EAN-13)	9318674554783
SKU	CAABLP034
Brand	Cabac
Range Name	Pre-Insulated Terminals

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Used to terminate conductors by containing the strands in a thin walled copper sleeve that is crimped onto the conductor Sleeve ensures no stray conductor strands or breaks from screw Crimp holds on sleeve until housing screw makes connection Crimp with one of our HNKE range of crimp tools Halogen free
Standard Pack Size	100
UNSPSC Class	39121400
UOM	EA
Vendor Product	BLP034
Collar Inside Diameter	1.9 mm
Crimping Die	HNKE3
Conductor Size	0.34 mm
Contact Material	Copper
Finish	Tin Electroplated
Insulation Colour	Pink
Insulation Material	Nylon
Number of Conductors	1
Pack Size	100 Pack
Overall Length	10 mm
Pin Diameter	0.8 mm
Pin Length	6 mm
Sleeve Material	Copper
Temperature	-55 to 105 deg C
