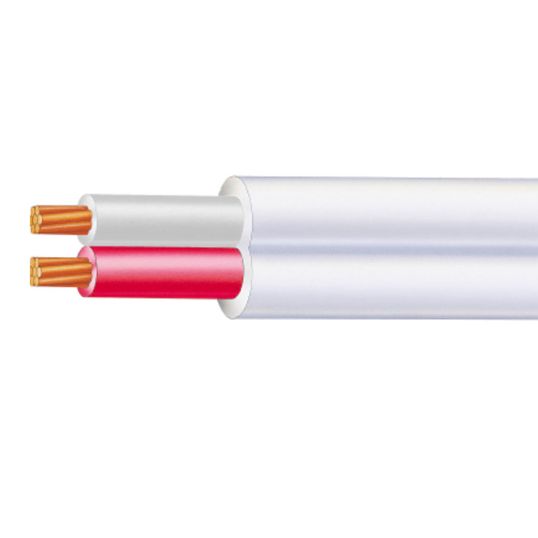

Flat Twin Active 2C 6mm PVC/PVC Red/White White 450/750V

6mm Flat Twin Active Cable Red/White 100mtr

PRODUCT CODE:
CBL6TA
Std Pack Size
100
OUR P/N:
CBL6TA

You need to be registered and logged in to view product details and pricing

Flat Twin Active Cable, 2 Core, 6 mm, Stranded Copper, 450/750 Volt, 11.6 mm x 6.9 mm Overall Diameter, 0.8 mm Insulation Thickness, 1.1 mm Sheath Thickness, Conductor Resistance: DC: 3.08 Ohm/km, AC: 3.75 Ohm/km, Insulation Resistance: 9.9 MOhm/km, V-90 PVC Insulation, PVC Sheath, Red White Cores, White Sheath, 90 deg C, AS/NZS 1125, AS/NZS 5000.2

Additional Information

Additional Information
Brand Generic
Standard Pack Size 100
UNSPSC Class 26121600
UOM MTR
Vendor Product CACP11A1002WVAB
Conductor Type Stranded Copper
Conductor Resistance DC: 3.08 Ohm/km AC: 3.75 Ohm/km
Core Colours Red/White
Insulation Material V-90 PVC
Insulation Thickness 0.8 mm
Insulation Resistance 9.9 MOhm/km
Overall Diameter 11.6 mm x 6.9 mm
Product Type Cables TPS SDI & Flat
Sheath Material PVC
Sheath Thickness 1.1 mm
Sheath Colour White
Standards AS/NZS 1125 AS/NZS 5000.2
Temperature 90 deg C
Voltage 450-750 Volt
Conductor Size 6 mm
Number of Cores 2 Core
