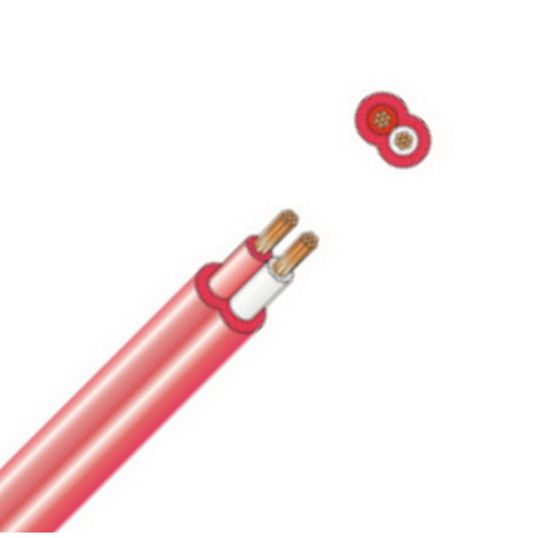

Fire Control 2C L/D 0.88mm PVC/PVC Red/White Red 250/250V

Electra 0.88mm Flat Twin Fire Control Cable 2 Core Light Duty Red/White 250mtr

PRODUCT CODE:
ELCFC7402LD-250
Std Pack Size
250
OUR P/N:
ELCFC7402LD-250

You need to be registered and logged in to view product details and pricing

Flat Twin Fire Control Cable, 2 Core, Light Duty, 0.88 mm, Plain Annealed Copper, 250/250 Volt, 10 Amp, 2x7/0.4 mm Strands, 3.8 mm x 6.1 mm Overall Diameter, 0.6 mm Insulation Thickness, 0.8 mm Sheath Thickness, Conductor Resistance: 21.2 Ohm/km, V-75 PVC Insulation, V-75 PVC Sheath, Red White Cores, Red Sheath, AS/NZS 1125, AS/NZS 3808

Additional Information

Additional Information
Brand Electra
Standard Pack Size 250
UNSPSC Class 26121600
UOM MTR
Vendor Product FC7402LD-250
Conductor Type Plain Annealed Copper
Conductor Resistance 21.2 Ohm/km
Core Colours Red/White
Current 10 Amp
Insulation Material V-75 PVC
Insulation Thickness 0.6 mm
Overall Diameter 3.8 mm x 6.1 mm
Product Type Fire Control Cable
Sheath Material V-75 PVC
Sheath Thickness 0.8 mm
Sheath Colour Red
Standards AS/NZS 1125 AS/NZS 3808
Stranding 2x7/0.4 mm
Voltage 250 Volt
Conductor Size 0.88 mm
Number of Cores 2 Core
