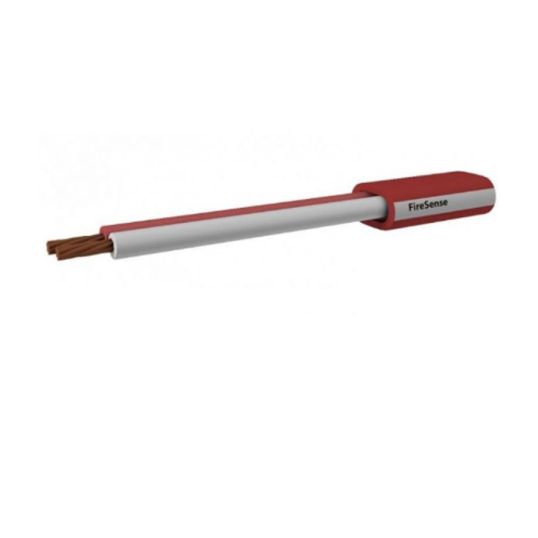

FireSense 1.5mm Flat TPS Cable Red/White 500mtr

chevron-left
loader
Loading...

Description

chevron-down
Flat TPS Cable, 1.5 mm, Stranded Annealed Copper, 250 Volt, 2 Core, 7/0.52 mm Strands, 7.2 mm x 4.5 mm Overall Diameter, 500 mtr Length, 12.8 Ohm/m Conductor Resistance, Red/White Core, HFI-90-TP Insulation, Red/White Insulation, HFS-90-TP Sheath, Red Sheath

Key Specifications

chevron-down
SKU
FIRTPSHF1.50-2CW-500
Brand
FireSense
Product Type
Flat TPS Cable

Technical Specifications

chevron-down
Looking for something specific? Search with keywords to help filter your required specifications.
search close

Additional Information

Features
  • Flat/Twisted - ELV markings as per AS 1670.2018
  • White Stripe - LV markings as per AS 1670.2018
  • Low Smoke, low toxicity
  • Red sheath for Fire Alarm application
  • Easy to strip and terminate
  • RCM certified
  • Metre markings
  • Halogen Free
Standard Pack Size 500
UNSPSC Class 26121600
UOM MTR
Vendor Product TPSHF-1.50-2CW-500
Conductor Resistance 12.8 Ohm/m
Conductor Size 1.5 mm
Conductor Type Stranded Annealed Copper
Core Colours Red/White
Insulation Colour Red/White
Insulation Material HFI-90-TP
Number of Cores 2 Core
Overall Diameter 7.2 mm x 4.5 mm
Sheath Colour Red
Sheath Material HFS-90-TP
Stranding 7/0.52 mm
Voltage 250 Volt
