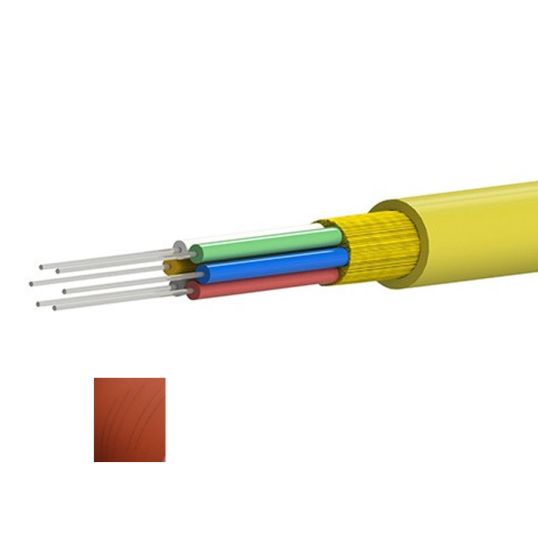

FOS Distribution Series Fiber Optic Cable 6 Count Multimode OM1 Fibre LSZH Aqua

$FOS\FOS_F-DXXXX-LSZH-OR.jpg$

Description

Distribution series fibre optic cable is ideal for installations requiring a flexible, lightweight and reliable cable design where excellent mechanical and environmental protection remain necessary. The balance between compact size and rugged construction make distribution the preferred cable for many preterminated cable assemblies or site terminated fibre networks. Available in a variety of alternative constructions in addition to standard riser grade including plenum grade, low smoke zero halogen and others. Contact FOS for details.

Key Specifications

SKU	FOSF-D6M1-LSZH-OR
Brand	FOS

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Features	Low smoke, zero halogen jacket and materials High performance components and construction Complies with relevant ITU, IEC and UL codes, standards and specifications High strength to weight ratio allows for easy handling Aramid yarn strength member and all dielectric cable construction 900 micron buffer eliminates the need for costly and time consuming fan-out kits or pigtail splices because connectors terminate directly to the fibre
Standard Pack Size	2000
UNSPSC Class	43223300
UOM	MTR
Vendor Product	F-D6M1-LSZH-OR
Attenuation	<3.5 db/km at 850 Nm - <1.5 db/km at 1300/1310 Nm
Bend Radius	4.5 cm
Fibre Count	6
Fibre Mode	Multimode
Impact Resistance	10J - 3 points - 1 impact
Fibre Type	OM1
Max. Tensile Load	450 N Installation/250 N Operation
Number of Fibres	2-24
Outside Diameter	5.3 mm
Sheath Colour	Aqua
Sheath Material	LSZH
Strength Member	Aramid Yarn
Temperature	20 to 70 deg C
