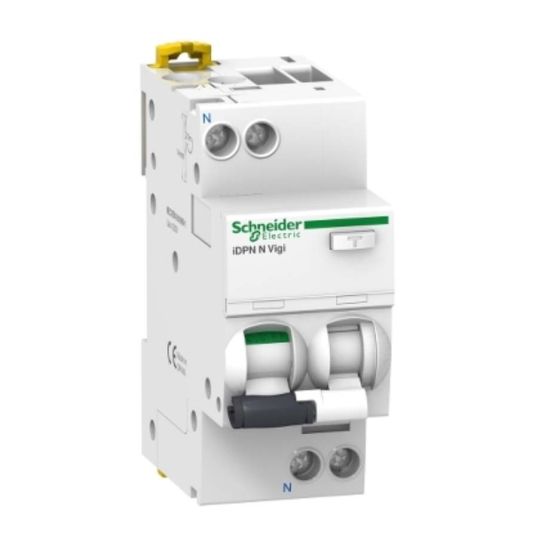

Schneider Acti9 iDPN Vigi RCBO 6kA 16A 1 Pole+N 30mA C Curve Type ASI Type

$Schneider\Schneider_A9D33616.jpg$

Description

RCBO, 16 Amp, 230 Volt AC, 50 Hz, 6 kA Interrupt Capacity, 30 mA Trip Sensitivity, 1 Pole + N Pole, C Curve, Single Terminal Top or Bottom Terminal, IP20/IP40, DIN Rail Mounting, White, -25 to 60 deg C, 85mm Height, 36mm Width, 73mm Depth

Key Specifications

Barcode (EAN-13)	3606480472152
SKU	SHNA9D33616
Brand	Schneider
Product Type	Combination RCBO

Technical Specifications

Looking for something specific? Search with keywords to help filter your required specifications.

Additional Information

Standard Pack Size	1
UNSPSC Class	39121600
UOM	EA
Vendor Product	A9D33616
Colour	White
Depth	73 mm
Height	85 mm
Current	16 Amp
Frequency	50 Hz
Interrupt Capacity	6 kA
IP Rating	IP20/40
Mounting Method	DIN Rail
Number Of Poles	1 Pole
Temperature	-25 to 60 deg C
Terminal Connection	Single Terminal Top or Bottom
Trip Characteristic	C Curve
Trip Sensitivity	30 mA
Voltage	230 Volt
Width	36 mm
